INS5710A
INS5710A
INS5710A is an I2C bus interface real-time clock with low power consumption. It embeds a 32.768KHz XO. It supports calendar (year, month, day, hour, minute, second) function. The SOP8 package makes it suitable to be used in portable electronic devices.
Product details
• Low current consumption: 1.2uA (Typ.)
• High stability: ＜ 5ppm @ +25℃
• Build-in TCXO: 32.768KHz
• Build-in temperature sensor
• Communication Interface: I²C bus
• Power supply voltage: 1.6V ~ 5.0V
• Operation temperature range: -40℃~+85℃
• Leap years autocorrection
• Package: SOP8 4.9mm × 6.0mm × 1.6mm

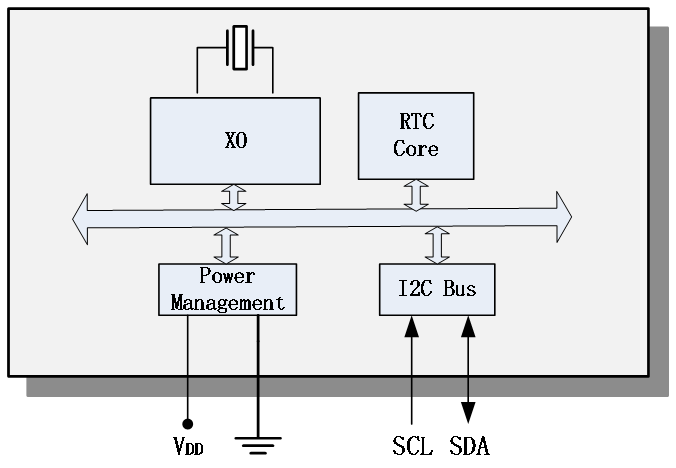

Block diagram
